Certifier Plus Flow Analyzer Test System
THE NEW CERTIFIER PLUS FLOW ANALYZER is a full-featured system capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal and high-frequency, as well as a variety of other medical equipment. This multi-functional pneumatic test system can measure 28 different test parameters and graph date in real-time. It's easy operation, rugged design and mounting options make the Certifier Plus Flow Analyzer ideal for use in field service, biomedical shops and manufacturing.
Product Highlights:
- Intuitive graphical user interface
- Display up to 18 test parameters at a time
- Real-time graphing with trigger indicators
- Save, load, transfer test setups with Configurations
- 8 hours of continuous battery operation
- Expanded data logging and screen captures
- Internal memory with USB data export
- Dual flow module capability
- Rugged and reliable design
- Mounting options for interface and flow modules
Features
|

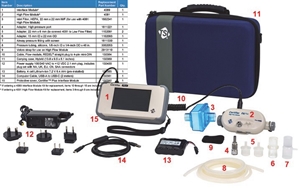

Model 4080 Certifier® Plus Flow Analyzer
|
Gas calibrations
|
Air, O2, Air/O2 mixtures, N2, CO2, N2O
|
Flow direction
|
Bi-directional (4081 high flow module)
|
Gas conditions
|
STP, ATP, BTPS, BTPD, plus user-defined
|
Temperature & pressure compensated
|
Yes
|
Max breath rate
|
1500 BPM
|
High frequency ventilators
|
Yes
|
Pressure measurements
|
Low, High, Barometric
|
Display
|
5-inch color touchscreen
|
Batteries
|
Li-Ion Rechargeable
|
AC adapter
|
Yes
|
Internal memory
|
50 MB, USB export
|
Computer interface
|
USB
|
Certifier® Plus Test Parameters:
- Flow rate, peak flow, minimum flow
- Volume (inhaled and exhaled)
- Minute volume
- Low pressure (differential)
- Peak, PEEP, and plateau pressures
- Mean & minimum airway pressures
- High pressure
- Barometric pressure
- Static compliance
- Inspiratory, inspiratory pause, and inspiratory rise times
- Expiratory times
- I:E ratios
- Respiratory rate
- Gas temperature
- Oxygen concentration (with optional 4073 kit)
