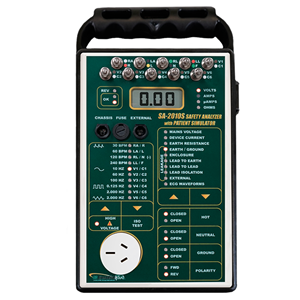

Safety Analyzer - Australian - 10 Lead w/ Sim

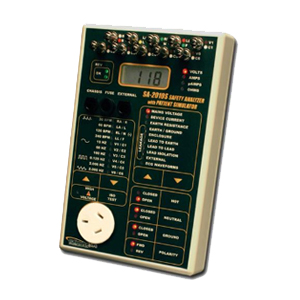

The BC Biomedical Model SA-2010S Series is a microprocessor-based Electrical Safety Analyzer with a built in Patient Simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections.   It provides a full Electrical Safety Analyzer, ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is patient lead testing for 10 inputs.

SA-2000 Series Protective Boot Included with All Safety Analyzers.

SA-2010S Series Basic Features:

• Led status indicators
• Audio feedback
• Touch control keys – no knobs
• 10 universal patient lead inputs
• High impact plastic case

Safety Analyzer Capabilities:

• Line voltage measurement
• Device under test current measurement
• Earth / ground lead resistance
• Earth / ground leakage current
• Enclosure / chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 10 amp rating
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth / ground leakage current
• Patient isolation leakage current
• External isolation leakage current


• Sine: 10, 60 AND 100 HZ
• ECG: 30, 60, 120 AND 240 BPM
• Square: 0.125 AND 2.0 HZ
• Triangle: 2 HZ
• High level output (1 V p-p)
• Amplitude accuracy: +/- 2%
• Frequency accuracy: +/- 0.5%
