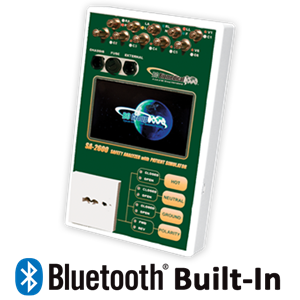

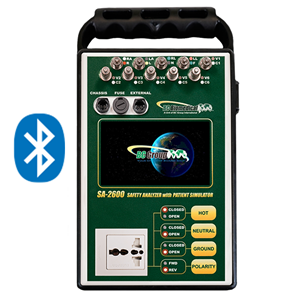

The BC Biomedical Model SA-2600-INTL is a fully automated microprocessor-based Electrical Safety Analyzer with built in Patient Simulator and Bluetooth technology. The SA-2600-INTL has fully customizable autosequences allowing for a full run-though of testing with limited user interaction. This release comes with a 4.3 inch color touchscreen, compatible with the MyBC Mobile App and allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full Electrical Safety Analyzer, as well as, ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is Patient Lead testing for 10 inputs.
SA-2000 Series Protective Boot Included with All Safety Analyzers.
SA-2600 Basic Features:
Custom and fixed autosequences
Micro USB and Bluetooth communications
Small, lightweight portable analyzer
Line voltage measurement
Device under test current measurement
200mA earth/ground lead resistance
Point-to-point testing
Enclosure/chassis leakage current
External resistance
External leakage current
Source receptacle wiring integrity monitor
MAP (isolation) function
Internal ECG simulator
True RMS readings
AAMI ES1-1993 or IEC 60601 selectable test loads
90 to 264 VAC operation
Touch controls keys – no knobs
LED status indicators
Audible feedback
Self-test points
Externally replaceable ground fuse
4.3” color touchscreen
Made in USA
STANDARD ACCESSORIES
BC20-20110 8 FT CHASSIS TEST LEAD (BLACK)
BC20-17026 GROUND PIN
BC20-30107 SOFT CARRYING CASE
UF-0250-01 REPLACEMENT GROUND LEG FUSE
BC20-204XX POWER CORD (SA-2600-INTL ONLY)
