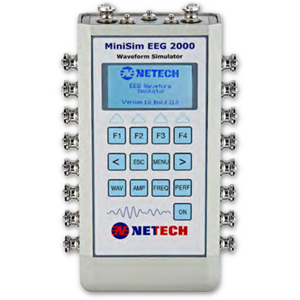

The MiniSim EEG 2000 is a versatile EEG waveform simulation instrument. It is designed exclusively for testing various EEG monitoring devices including recorders, Sleep Study Monitors, and multi‐channel EEG monitoring systems. This compact, microcontroller-based instrument simulates six different types of EEG waveforms, such as Alpha, Theta, Gamma, Delta, %HWDand ABR. In addition to the EEG waveforms, it simulates ECG waveforms as well as performance waveforms such as Sine, Square and Triangle. MiniSim EEG 2000 provides 16 independent outputs.
Product Highlights
• 6 different EEG waveform Simulation.
• 16 channel independent outputs.
• 3 lead ECG normal sinus waveform simulation.
• Performance wave forms - Sine, Square, Triangle.
• Patented EEG cup electrodes for easy hookup of cup electrodes.
• Ideal for performance testing of all EEG instrumentation.
• One of a kind.
Main Features
• Large LCD graphics display.
• Simple to use, utilizing dedicated function keys and menu-driven interface.
• Compact, lightweight and battery operated.
• User selectable waveforms.
• User-selectable amplitude from 10 V to mV.
• User selectable amplitudes.
• Battery operated (7.4 Volt LI Ion rechargeable battery).
• 2 Year Warranty.
