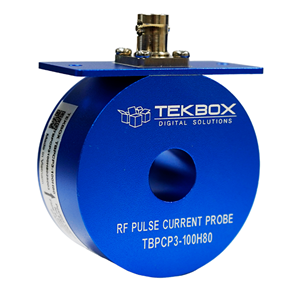

The probe has a 3 dB bandwidth from 100 Hz to 80 MHz and is characterized over the frequency range from 1 Hz to 100 MHz. The TBPCP3-100H80 is typically used for surge or RF pulse current monitoring applications in the time domain, in contrary to RF current monitoring probes designed for EMC applications, which are typically used for measurements in the frequency domain.
Specifications:
Characterized frequency range: 0.1 Hz to 100 MHz
3 dB bandwidth: 100 Hz to 80 MHz (measured in a 50 + 50 Ohm loop)
Transfer impedance into 50 Ω load: -6 dBΩ; 0.5 V/A
Transfer impedance into high Z: 1 V/A
Probe port impedance: 50 Ω
Droop rate: 0.02 %/µs
Rise time: < 8 ns
Max. RMS AC current: 3A
Max. pulse current: 600A
Current time product: 0.007 Ampere seconds
Max. core temperature: 80 °C
Aperture diameter: 15 mm
Outside diameter: 61 mm
Height: 30 mm
Weight: 320 g
Connector type: N female; comes supplied with a coaxial adapter to BNC-female
