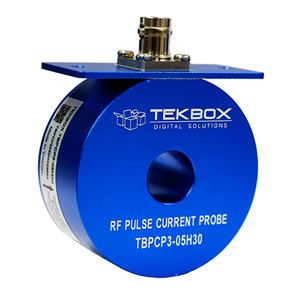

The probe has a 3 dB bandwidth from 0.5 Hz to 30 MHz and is characterized over the frequency range from 0.1 Hz to 100 MHz. The TBPCP3-05H30 is typically used for surge or RF pulse current monitoring applications in the time domain, in contrary to RF current monitoring probes designed for EMC applications, which are typically used for measurements in the frequency domain.
Specifications:
Characterized frequency range: 0.1 Hz to 100 MHz
3 dB bandwidth: 0.5 Hz to 30 MHz (measured in a 50 + 50 Ohm loop)
Transfer impedance into 50 Ω load: -26 dBΩ; 0.05 V/A
Transfer impedance into high Z: 0.1 V/A
Probe port impedance: 50 Ω
Droop rate: 0.12 %/ms
Rise time: < 10 ns
Max. RMS AC current: 55A
Max. pulse current: 5000A
Current time product: 0.25 Ampere seconds
Max. core temperature: 80 °C
Aperture diameter: 15 mm
Outside diameter: 61 mm
Height: 30 mm
Weight: 320 g
Connector type: N female; comes supplied with a coaxial adapter to BNC-female
